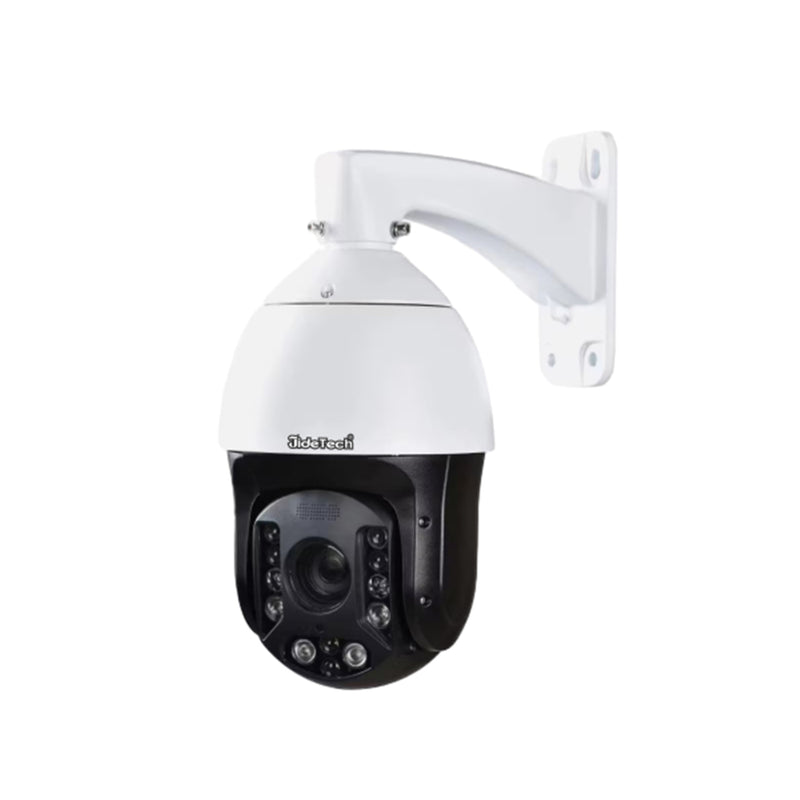

JideTech 6-inch 4MP 33X Face Capture & People Counting POE PTZ Camera (P15 Plus)
JideTech 6-inch 4MP 33X Face Capture & People Counting POE PTZ Camera (P15 Plus)
Couldn't load pickup availability
Feature:
1/2.8 inch progressive scan 4 million pixel CMOS image sensor, 6 high-quality dot matrix lights + 4 laser infrared lights, infrared distance 200 meters.
2. Lens: 4.5- 148.5mm33x optical zoom + 16x digital zoom. Horizontal rotation 0°~360°, continuous rotation speed: 0.05°~240°/s; vertical -10°~90°, rotation speed: 0.05°~180°/s, preset position 256
3. H.265+/H.265/H.264+/H.264/MJPEG video compression mode, supports POE++ function (IEEE802.3bt). Built-in SD card slot, supports up to 256GB
4. Supports audio output and input by default (AAC-LC wideband audio coding, high-definition sound quality; supports noise suppression), alarm output and input & CVBS
5. Support face recognition, face inspection and comparison (up to 30 faces per second)
6. AI functions: intrusion detection, tripwire detection, entering area, leaving area, item care, item loss, scene change, supports alarm triggered by human body or vehicle, flag/animal false alarm
Camera Specification
|
Model |
P15-PLUS |
|
Camera |
|
|
Image Sensor |
1/2.8" CMOS |
|
Minimum Illumination |
Color: 0.01Lux, B/W: 0.001Lux,0 Lux with IR |
|
3D NDR |
Support |
|
WDR |
Support |
|
Electronic Shutter |
AUTO |
|
Day Night Mode |
AUTO ICR Color to B/W |
|
Focal Length: |
4.5- 148.5mm，33X Optical Zoom, |
|
Zoom Speed |
Approx.3s(Optical Wide~Tele) |
|
Angle of View: |
55.4-2.9 degree(Wide-Tele) |
|
Resolution |
2560(H)x2048(V) |
|
Main Stream |
2592*1944@25fps，2500*1600@25fps,2048x1536@25 fps |
|
Sub Stream |
D1@30fps |
|
Video Compression |
H.265+/H.265/.H.264 |
|
Network protocol |
TCP/IP，UDP，HTTP，HTTPS，DHCP，RTSP，DDNS，NTP，PPPOE，UPNP，SMTP |
|
Interface protocol |
ONVIF |
|
PTZ Control |
|
|
IR Distance |
200m |
|
Horizontal Range |
0°～360° continuously |
|
Vertical Range |
-15°～90° |
|
Horizontal Speed |
0.05°～240°/s |
|
Vertical Speed |
0.05°～180°/s |
|
Max Speed |
240°/S |
|
Preset |
256 |
|
Patrol scan |
4pcs（10 preset for each） |
|
L/R Scan |
1pc |
|
Horizontal Scan |
1pc |
|
Power-off memory |
Support |
|
PARK Action |
Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
|
Watch position |
Support |
|
Wide angle speed limit |
Focus / speed automatic matching function |
|
POE function（Optional） |
|
|
POE supply voltage |
DC48V |
|
POE supply PIN |
1,2(+)、3,6(-) / 4,5(+)、7,8(-) Auto adaptation |
|
General |
|
|
Power |
DC12V/4A or POE++ POE injector |
|
Consumption |
＜38W |
|
Mounting |
Wall mounting or lifting |
|
work environment |
temperature ：-20～60℃；humidity＜90% |
|
Protection level |
IP66 waterproof，6000V lightning protection |
|
GW |
4.5KG |
