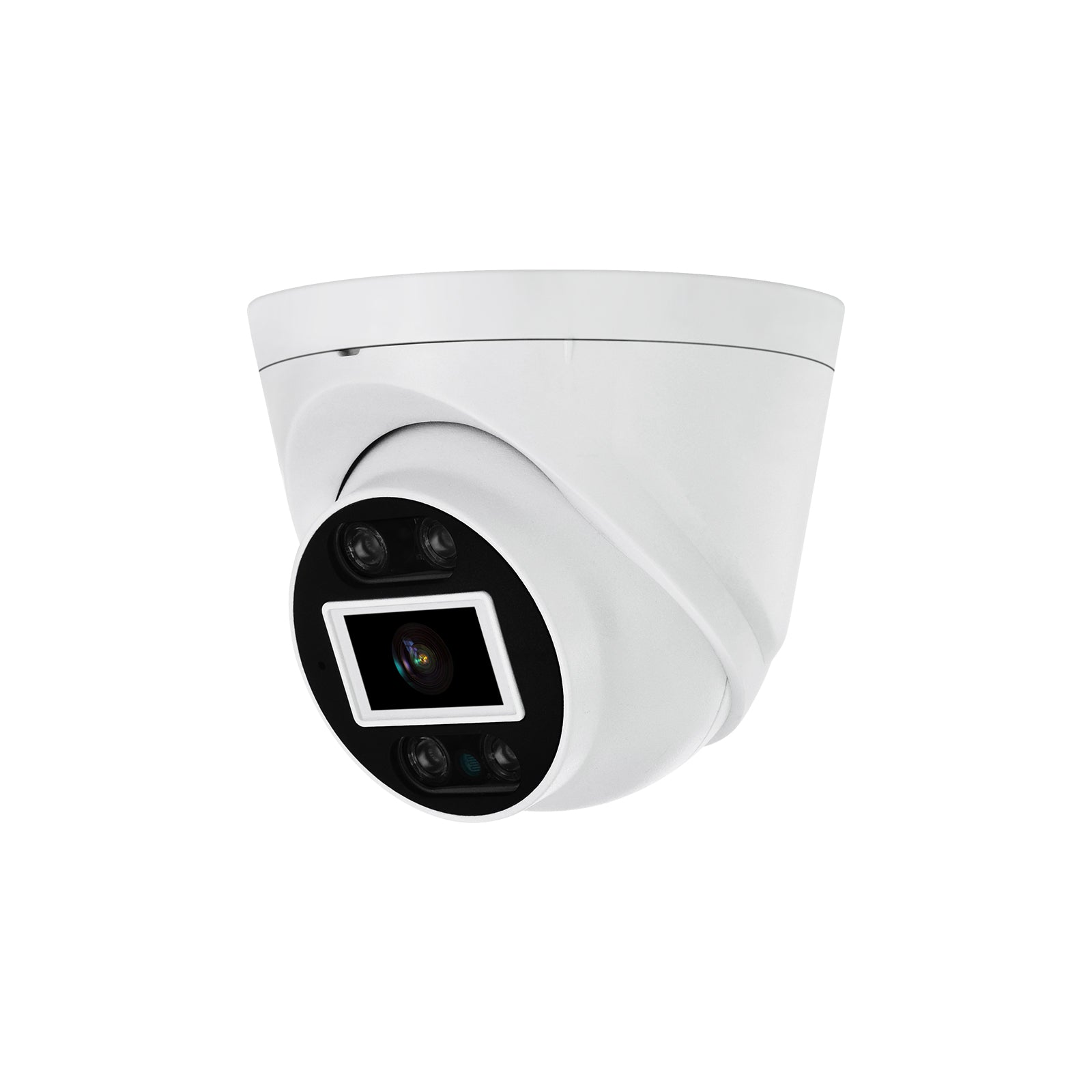

JideTech 5MP/8MP PoE Dome IP Surveillance Camera (DM02-5MP)
JideTech 5MP/8MP PoE Dome IP Surveillance Camera (DM02-5MP)
Couldn't load pickup availability
Key Features
- 264/H.265/H.265+ video compression standard;
- Video code rate 64Kbps-12Mbps adjustable, frame rate (5-20fps) adjustable,
- DC 12V±25% and PoE (IEEE 802.3af) power supply;

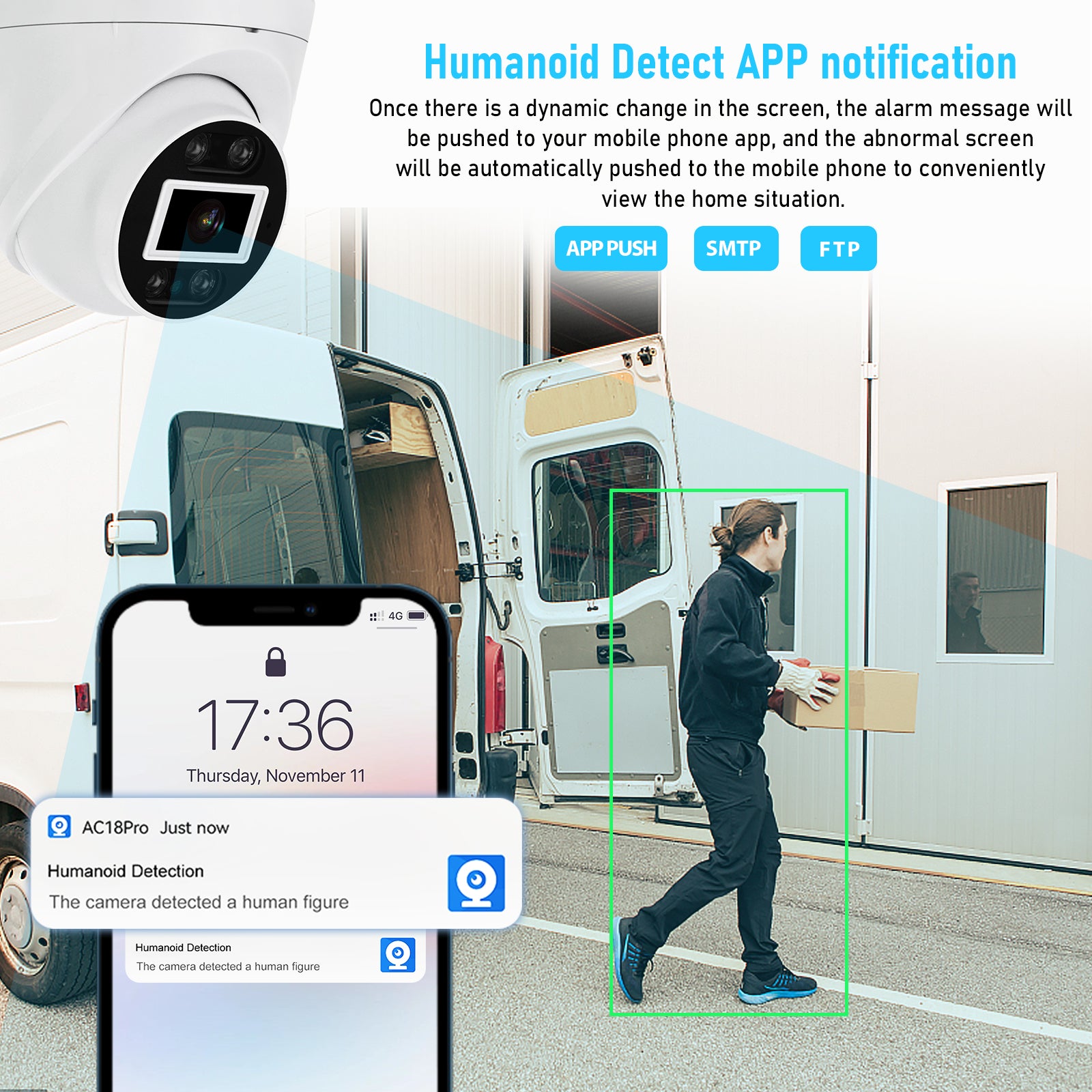

- Support intelligent analysis: humanoid detection, vehicle detection (optional), custom area;
- Depth Perimeter: Supports 4 types of defenses: cross-border detection, entering the area, leaving the area, and area intrusion model"
- It can classify, detect and arm motor vehicles, non-motor vehicles and pedestrians;
- Support mobile phone, PC client remote monitoring, view the live scene anytime, anywhere
Camera Specification
|
Model |
DM02-5MP/DM02-8MP20/DM02-8MP30 |
|
Sensor |
1/2.8”IMX 415 CMOS Sensor+SSC338 |
|
Lens |
4MM |
|

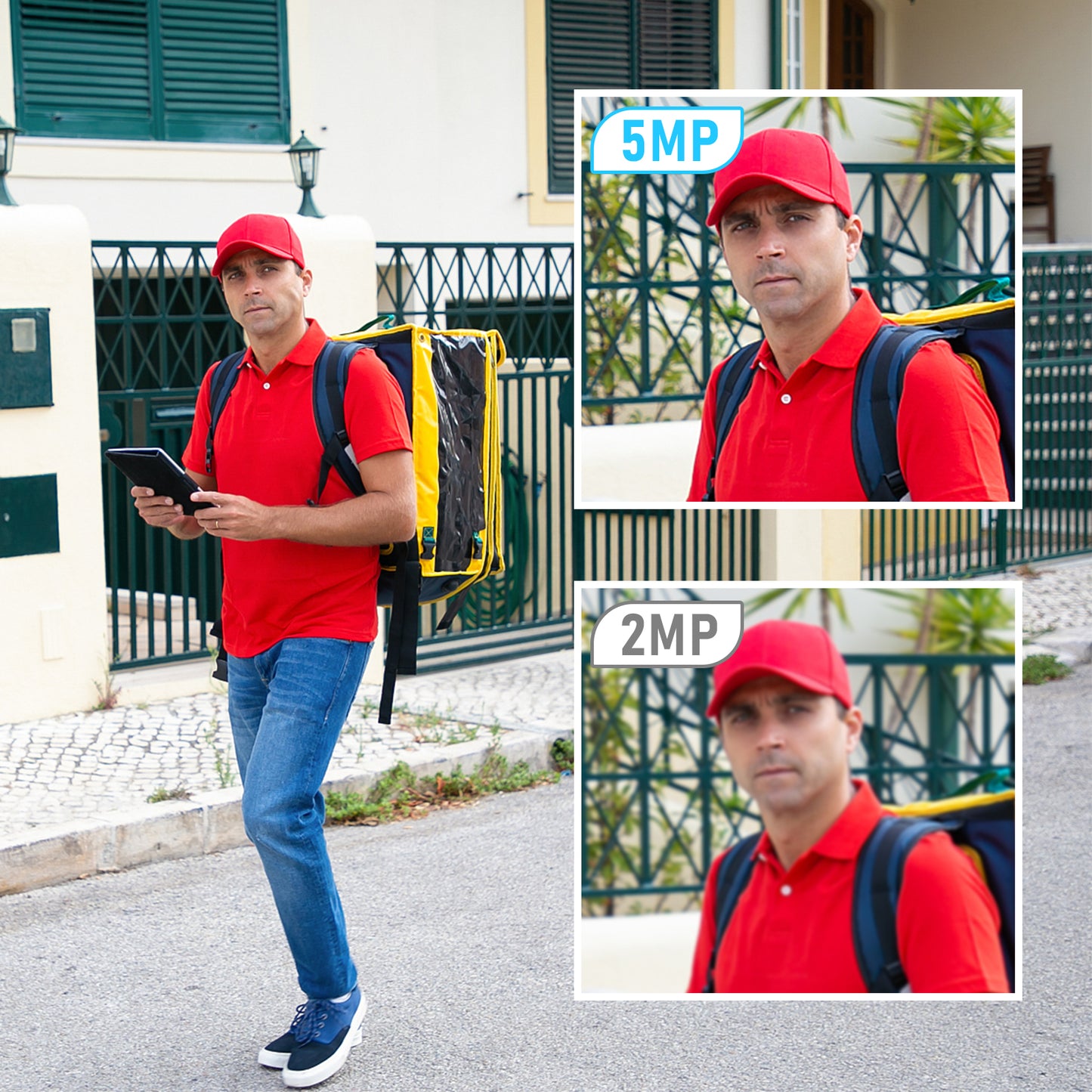

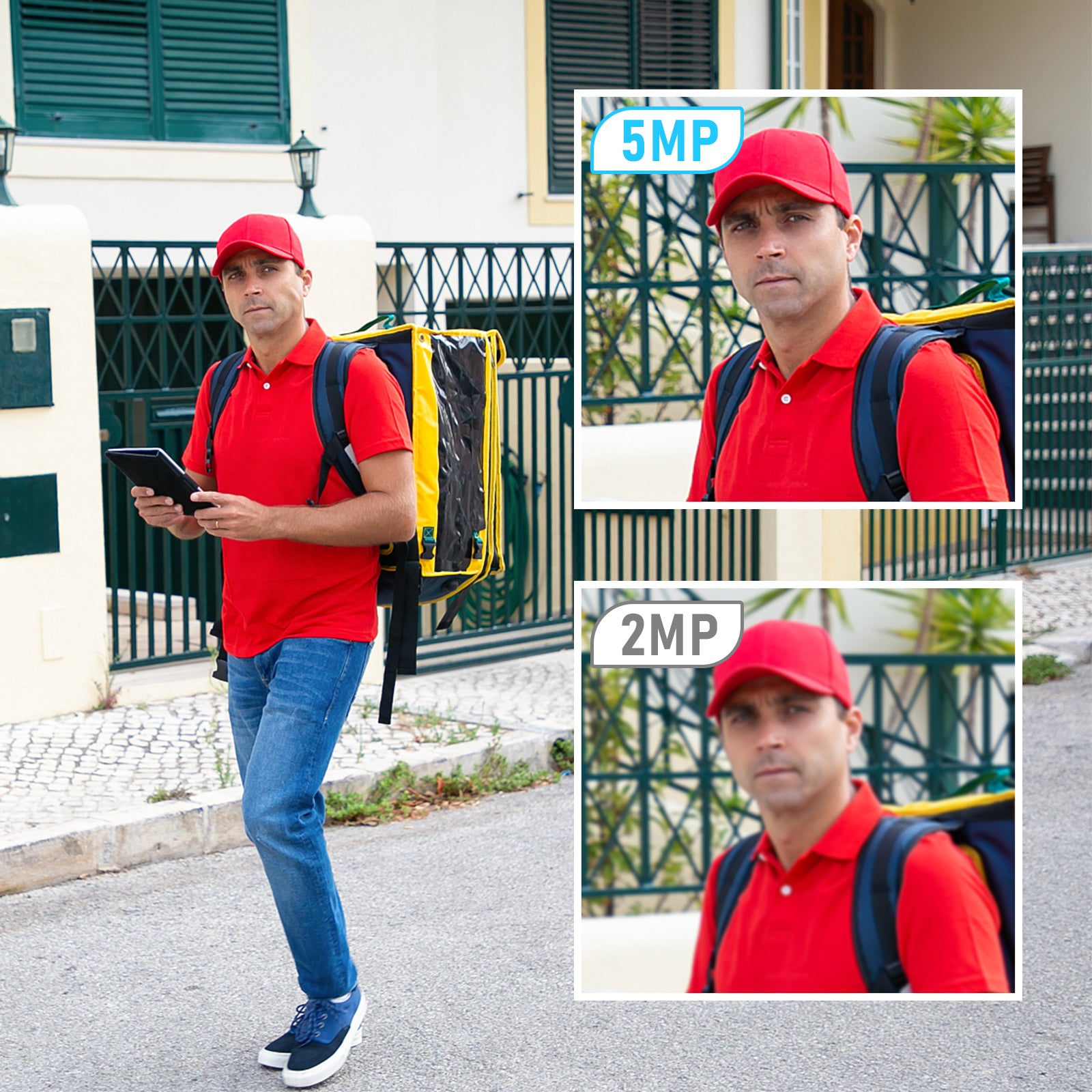

Resolution |
Main stream: 3840×2160, 3072×2048, 2592×1944, 2560×1440, 2304×1296@20fps, 1920×1080 1280×720@60fps; Sub stream: 720×480, D1, VGA, 640×360 @30fps; |
|
Video encoding |
H.265+/H.265/H.264 |
|
Video storage |
Cloud storage, Local storage |
|
Noise reduction |
Support 3D noise reduction |
|
Minimum illumination |
Color: 0.01 Lux, Black/White: 0.001 Lux |
|
Mirror/Flip |
Support |
|
Electronic Shutter |
Auto/Manual (1/5~1/50000 sec) |
|
wide dynamic range |
Adjustable brightness, contrast, saturation, exposure, up-down inversion, left-right mirroring |
|
BLC |
Support |
|
Defog |
Support |
|
OSD character overlay |
Support |
|
privacy mask |
Support |
|
Function |
Motion detection; humanoid detection; alarm push (mobile APP, SMTP, FTP alarm push) |
|
Day and night mode |
IR-CUT infrared filter type |
|

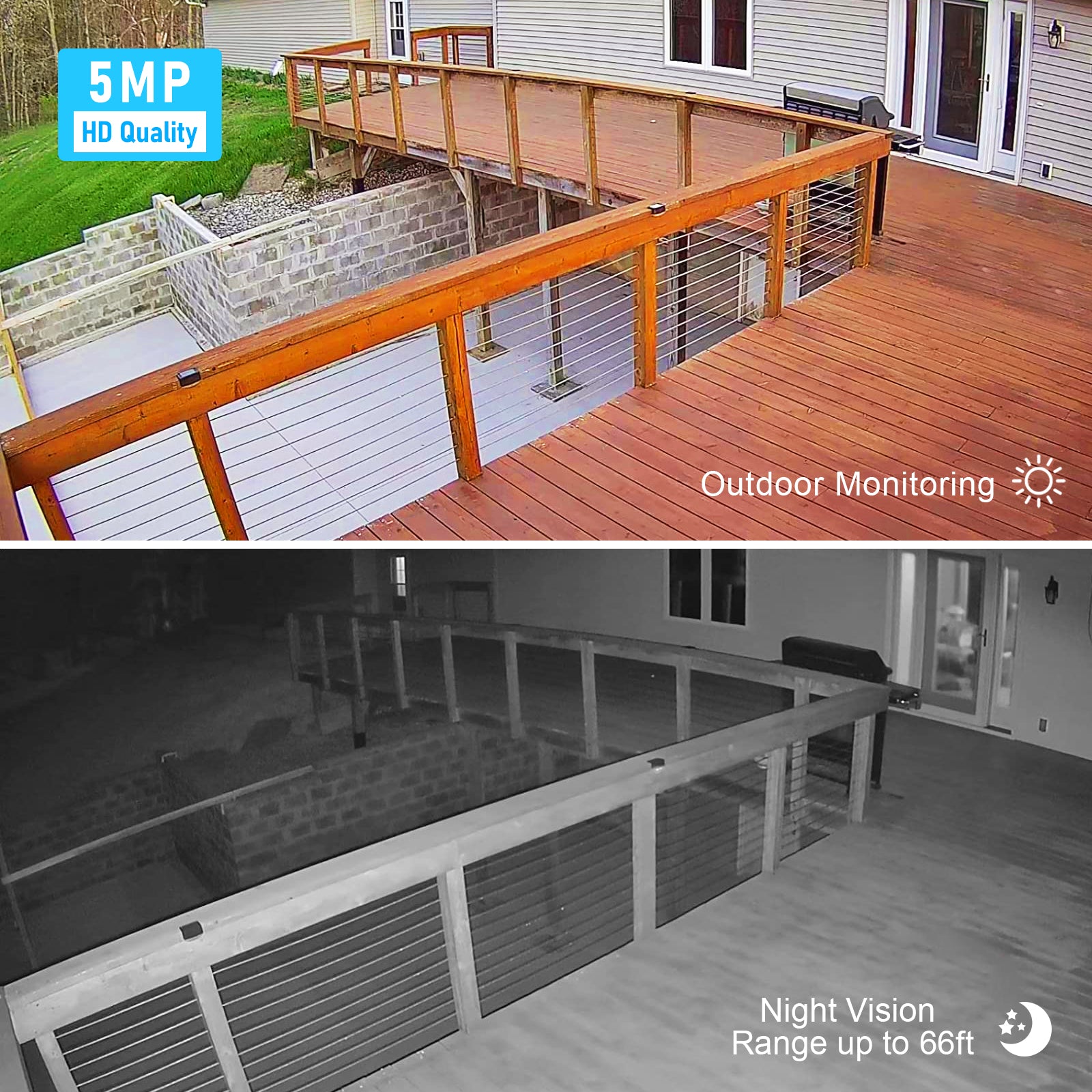

Night vision fill light |
White light + infrared light (30M) |
|
Audio |
Support voice intercom) |
|
SD card |
Support (up to 256GB) |
|
Interface |
10/100M RJ45 network interface |
|
PoE |
48V-52V IEEE 802.3af standard |
|
Network protocol |
Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR docking protocols |
|
ONVIF protocol |
Standard ONVIF2.4 |
|
Web side |
Plug-in requirements: IE9+, Google, Firefox browsers |
|
Power supply |
POE&12v 1A (IR light on 6W) |
|
Operating temperature |
0℃ -＋50℃ |
|
Working humidity |
10%－90% |
|
Installation method |
Ceiling mount |
|
Package Size |
135*135*120mm 0.45kg |
|
Carton Size |
600*455*295mm /30pcs |
|
Accessories |
Manual*1 Installation screw package*1 Waterproof accessories*1 |
|
Working environment |
outdoor/indoor |
|

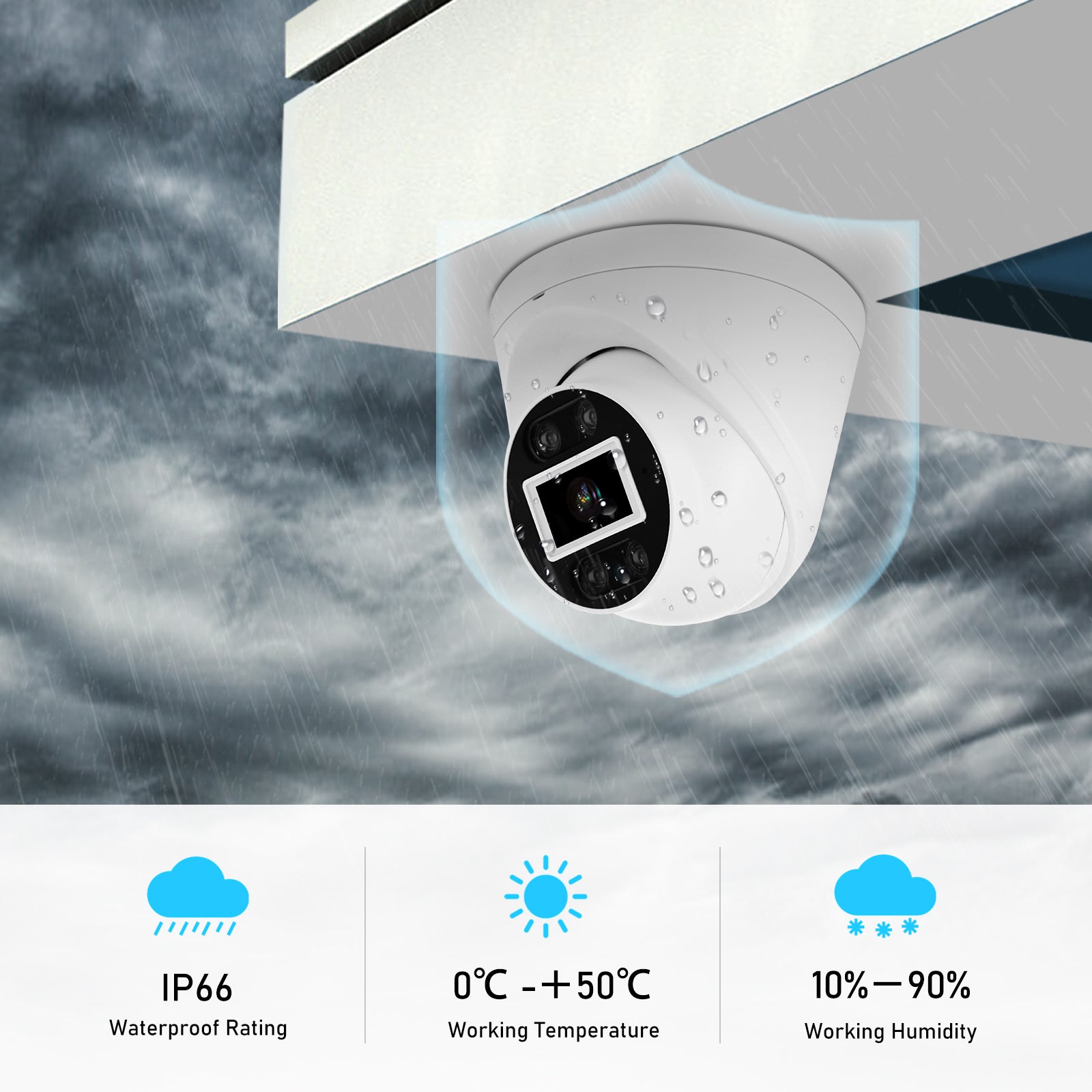

Degree of protection |
IP66 |
