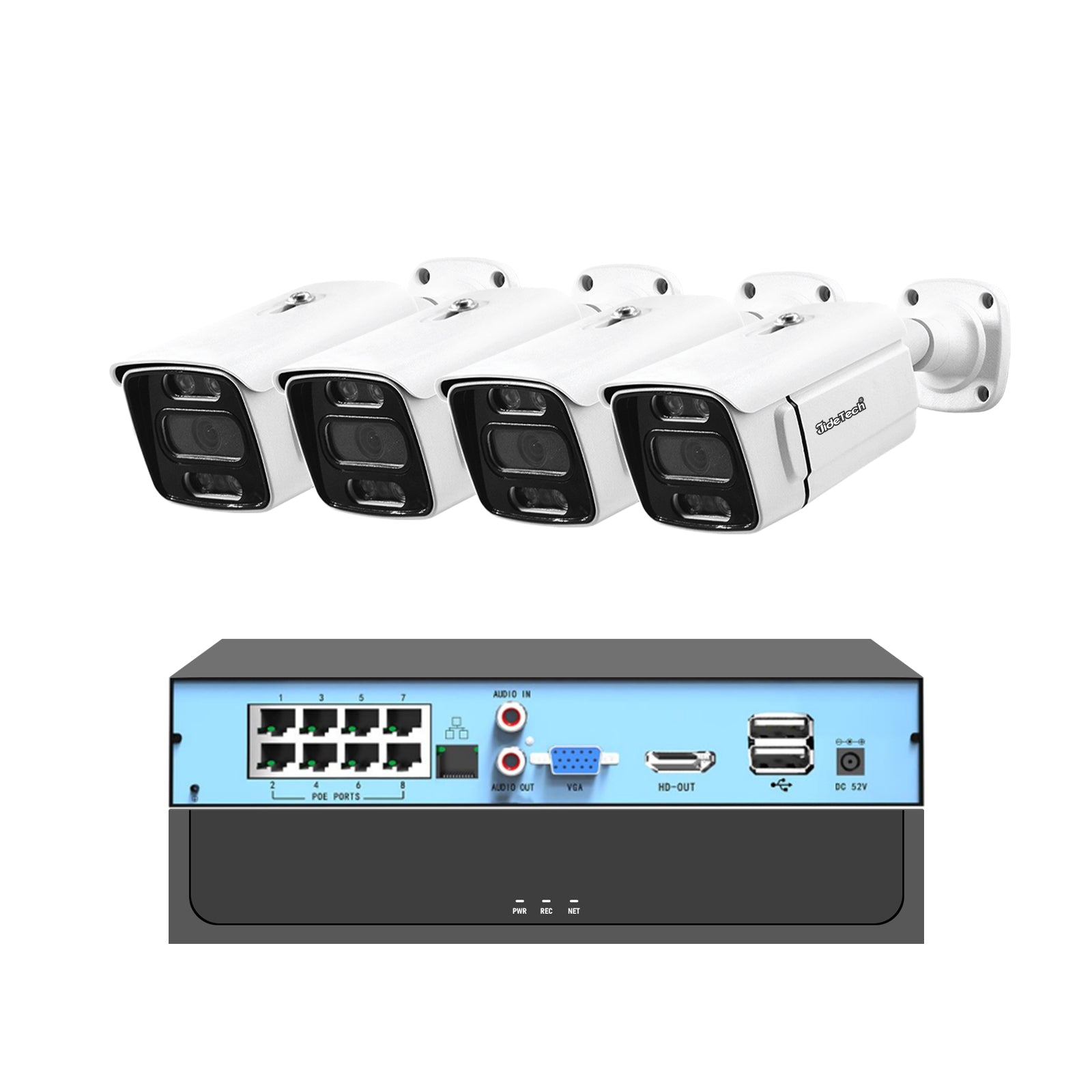

JideTech 5MP/8MP 4CH POE CCTV Camera System with NVR(NK2-4H-5MP)
JideTech 5MP/8MP 4CH POE CCTV Camera System with NVR(NK2-4H-5MP)
Couldn't load pickup availability
Key Features
- 8CH NVR, Max Resolution 12MP 8CH, Support 1CH 12MP Playback, 4CH 8MP, 4CH 8MP and 8CH D1. HDMI supports 4K@30 output, VGA supports 1080P@30 output;
- NVR Supports 1* HDMI, 1*VGA, 1* Video Interface, 2*USB2.0 , 1*RJ45, Support 1 Hard Disk, Max Support 8TB, Support Cloud Storage and multi-devices to remote monitoring
- POE port defaults to a 100M 120-meter stable transmission, and the optional long-line mode 250-meter stable transmission.
- Using High Performance Sensor and Chipset: 1/2.8” Mstar Sensor and SONY335 Chip, fully apply to USA NDAA (Section 889).
- Camera Resolution:5.0MP 2592*1944 30fps, 1920*1080 60fps,3.6mm Fixed Lens, 4pieces LED, IR Night Vision 20m (Support Color Night Vision),.

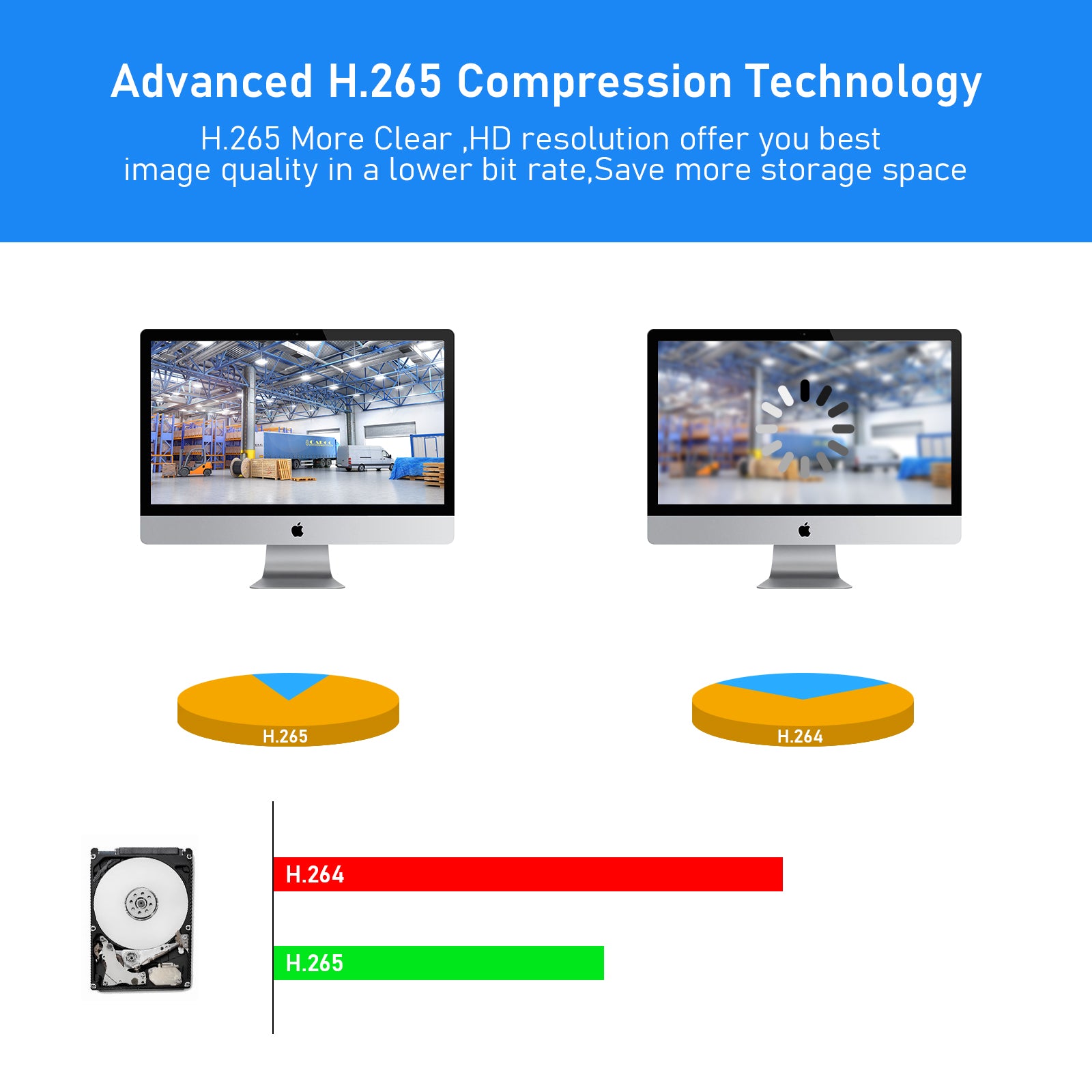

- 264/H.265/H.265+ MJPEG Video Compression, Supporting Main Stream, Sub-Stream and D1. Compatible With Onvif Version 2.4, Compatible with third-party software & NVR, Cameras. Support HIKVISION Software IVMS4200.
- Support Precise Humanoid Detection, Area Detection, Vehicle Detection.
- Support static IP, also support dynamic IP (DHCP), Support IE, Google, Firefox, and Safari browser, Support custom network card (Mac)address, Support P2P plug and play, and mobile phone, Supports custom users and authority management
- Waterproof IP66
- Specification
|
Model number |
NK2-4H-5MP |
|
Camera(5MP) |
|
|
Sensor |
1/2.8" SSC30KQ |
|
Main Chip |
SONY335 |
|
Resolution |
Mainstream: 2592x1944,2560x1440,2304x1296,1080P,720P Sub stream:720x480, VGA, 640x360,480x360,CIF Third stream:1080P,720P,CIF |
|
Frame Rate |
5MP,4MP,3MP 30fps. 1080P,720P 60fps |
|
Lens |
3.6mm fixed Lens |
|
Video encode |
H.265,H.265+,H.264.Third stream: H.265,H.265+,H.264 and MJPEG, Record encode:MP4 |
|
Audio encode |
G.711,G711A,Sample Rate:8000-16000.Bit rate :64000.AAC ,Sample Rate: 16000.Bit rate :16000 |
|
Image adjustment |
Support Brightness, Contrast,Saturation,sharpness,blc,hlc,2D NR,3D Repower Frequency, Forced Anti-flicker, Horizon Flip, Vertical Flip,Day shutter and Night shutter mode |
|
WDR |
Support WDR,HDR |
|
IR LED |

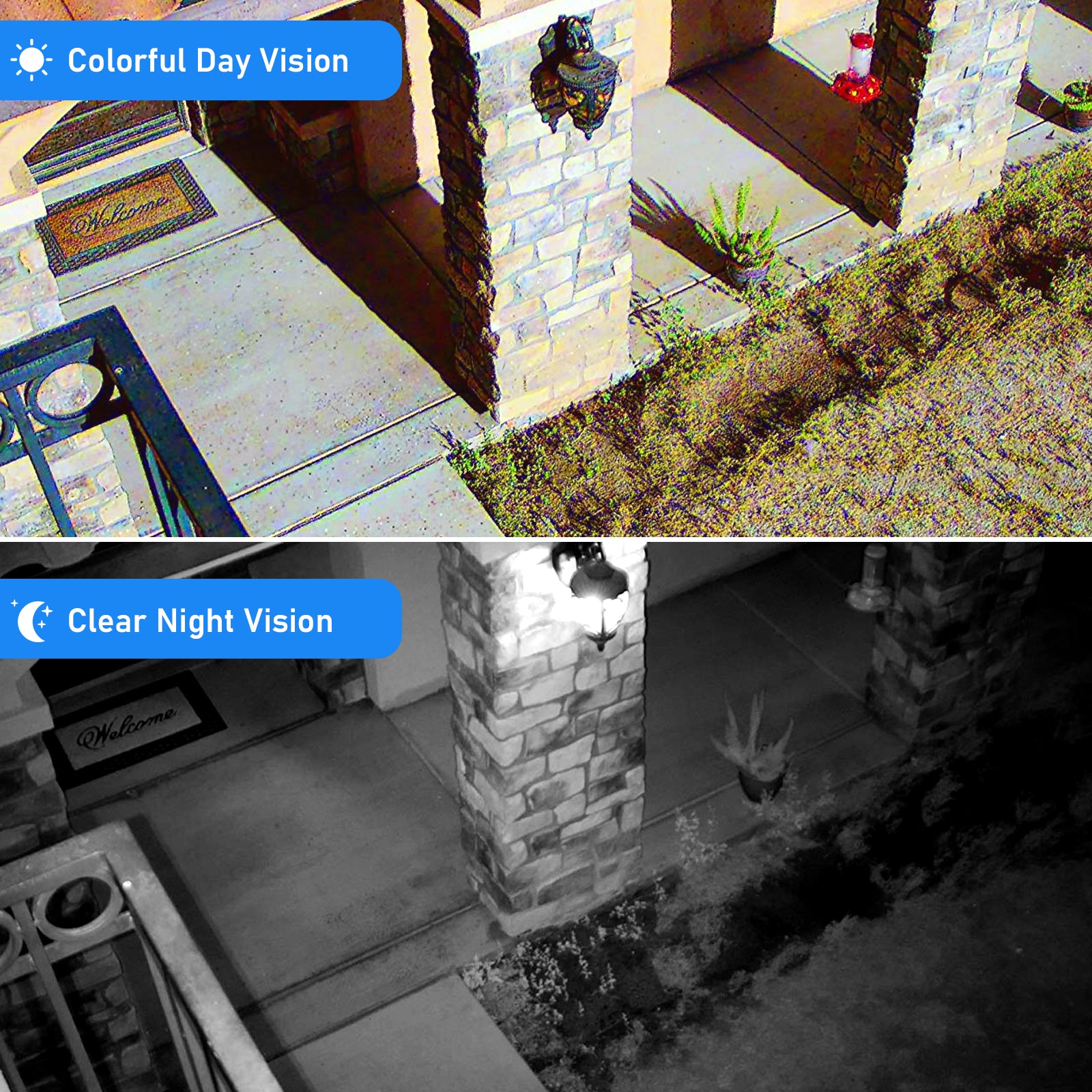

4PCS Array LED, Support Night vision 20-30meters |
|
IR CUT setting |
Support Auto, Timing, External and Manual |
|
Day/Night |
Auto, Timing, External and Manual |
|
Light ON/OFF sensitivity |
0-100 can be set |
|
Light on illumination |
Support 0.001Lux to 1.5 LUX |
|
IP address |
Support static and DHCP, and Support MAC address modification |
|
ONVIF protocol |
Support ONVIF and ONVIF Absolute move, RTSP, RTMP, Hikvision and Dahua protocol, Support FTP,SMTP(EMAIL) |
|
AI |
Support Motion detect, Human, car, motorcycle and bicycle detect, |
|
P2P connection |
Support mobile APP and P2P PC APP |
|
Network protocols |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP,IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc |
|

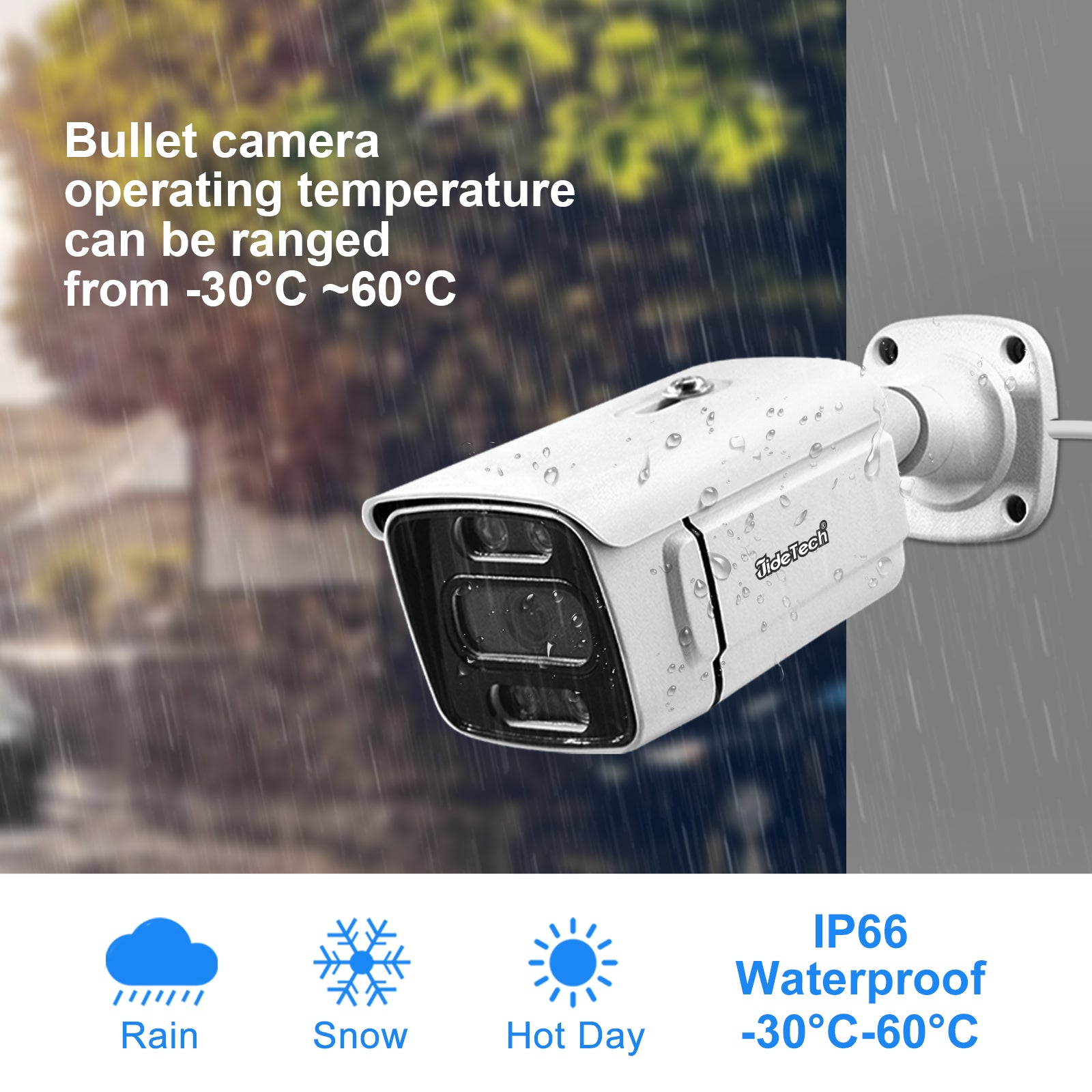

Waterproof |
Metal Case, IP66 |
|
Power |
DC12V/1A &PoE |
|
Working Temperature |
-10℃～＋60℃ |
|
Network Video Recorder (NVR) |
|
|
Video decoding |
H.265,H.265+,H.264 |
|
Decoding capability |
1x12MP@30,1x8MP@30,2x5MP@25+2xD1, 4x4MP@25,4x 3MP@25, 4x1080p@30，8xD1@30 |
|
Audio decoding |
G.711 |
|
Network video input |
8 channels 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P |
