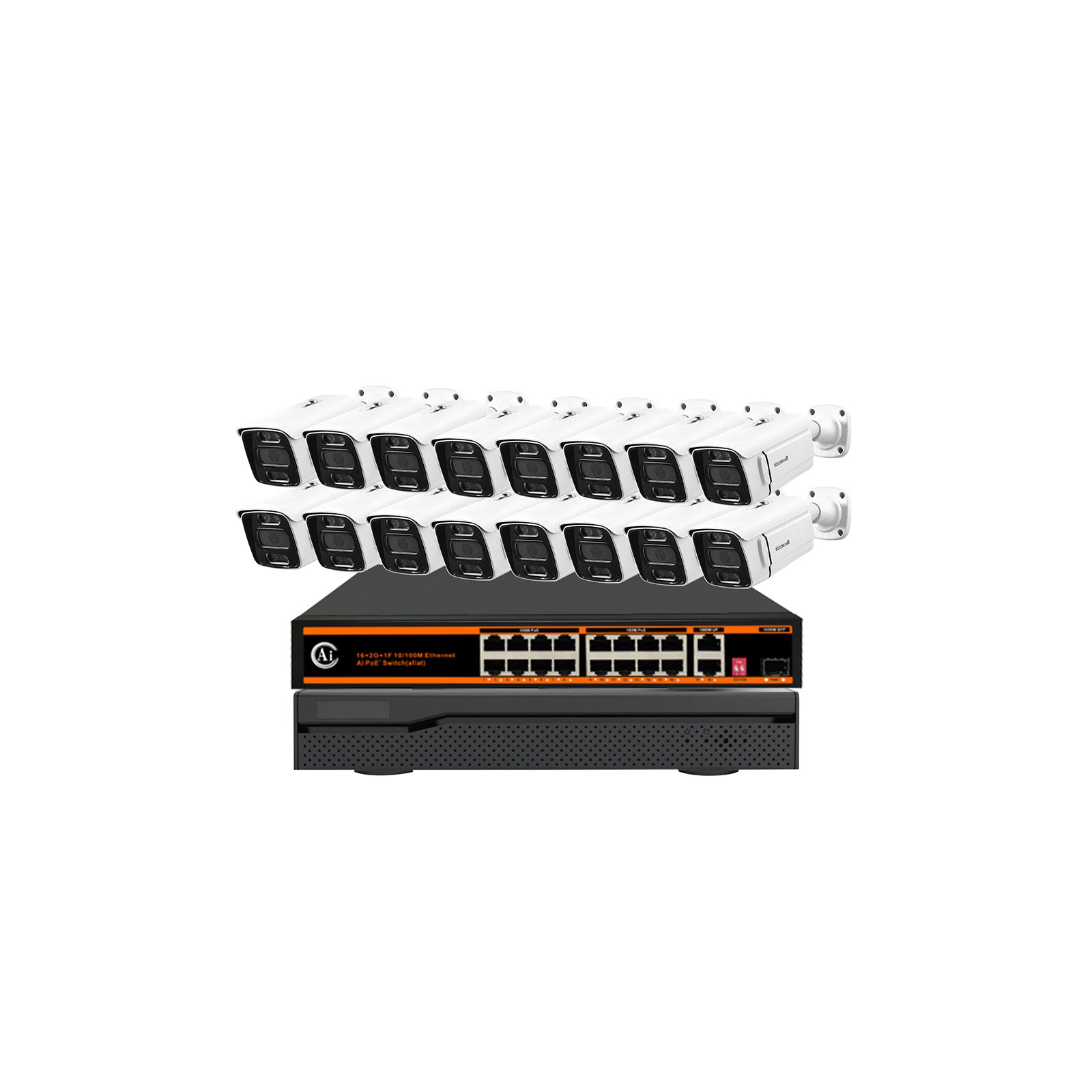

JideTech 5MP/8MP 16CH POE Security Camera Systems with NVR (NK2-16H-5MP)
JideTech 5MP/8MP 16CH POE Security Camera Systems with NVR (NK2-16H-5MP)
Couldn't load pickup availability
Key Features
- Supports preview, storage and playback of 8MP high-definition network videos;

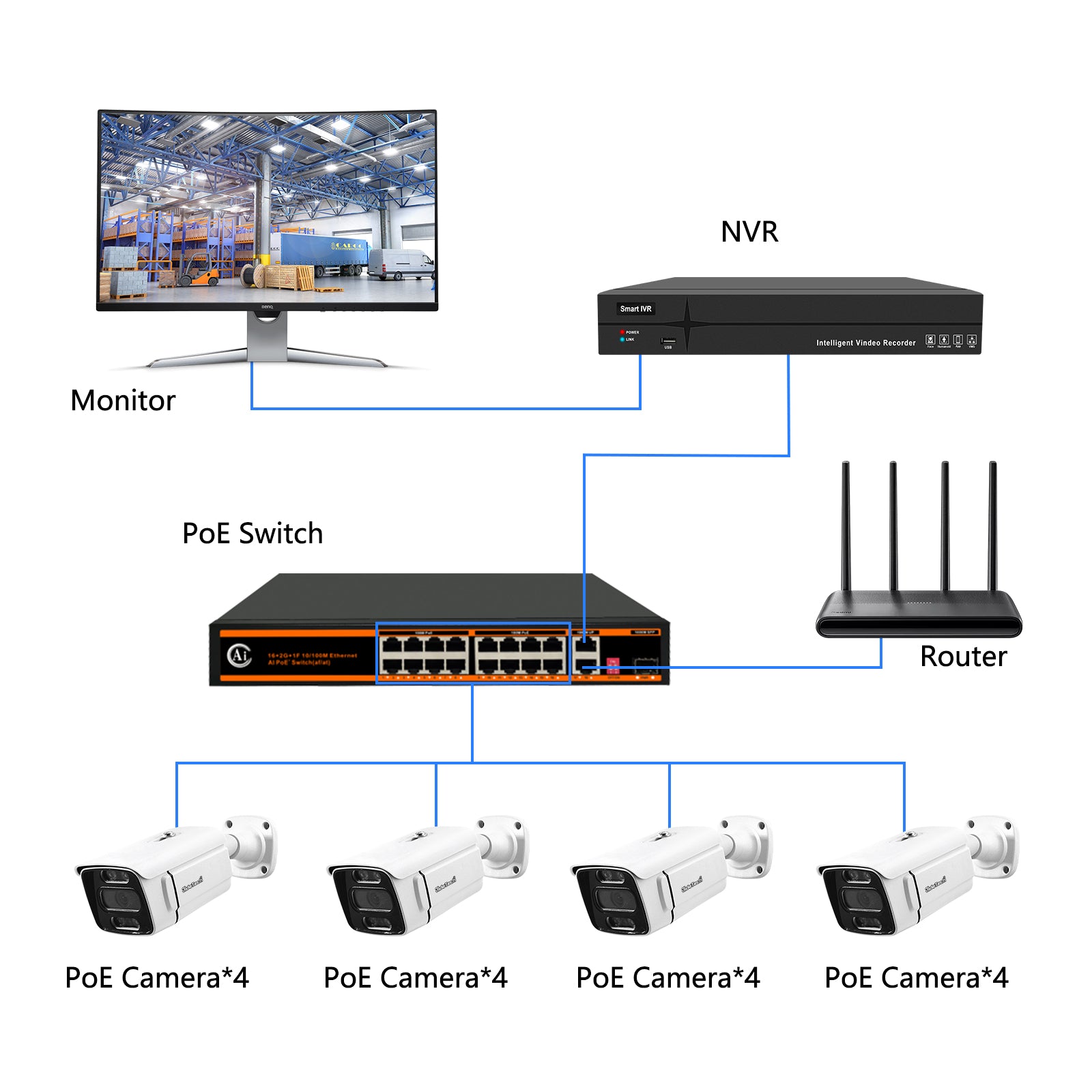

- POE power supply: Directly connected to the network cable, one line meets network + power supply, easy to install;
- Support H.265 video encoding stream, and support mixed access of H.265 and H.264 devices;
- Automatically add IPC and support plug-and-play;
- Support VGA and HDMI interfaces to output video signals at the same time (same source), HDMIUp to 4K output;
- Camera Resolution:3840x2160@15fps
- Infrared white light dual-light design supports three adjustable night vision modes to achieve full color at night;
- Active defense, if someone breaks into the warning area, the equipment will sound and light alarm;
- Intelligent humanoid detection, filtering false alarms and accurately protecting your safety;
- Built-in high-sensitivity MIC and speaker, supporting two-way voice intercom;
- Supports multi-channel remote monitoring via mobile phone and PC clients, allowing you to view the live situation anytime and anywhere;

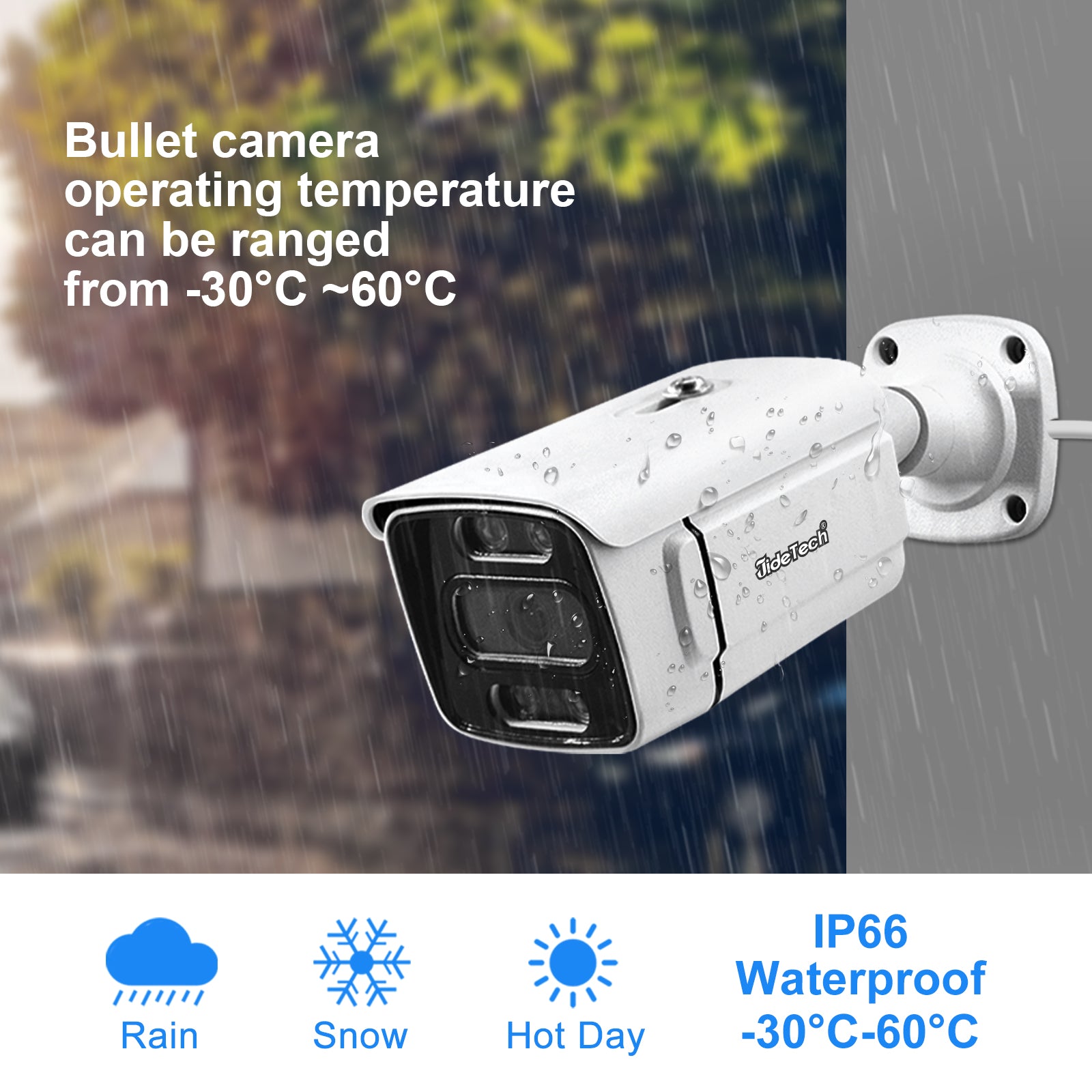

- Waterproof IP66
Specification:
|
Camera(8MP) |
|
|
Sensor |
1/2.5” CMOS Sensor, Color: 0.1 Lux, Black/White: 0.01 Lux |
|
Resolution |
Main stream: 3840x2160@15fps; sub-stream: 720x576@15fps |
|
Lens |
4mm fixed Lens |
|
Video encode |
H.264/H.265, supports dual streams |
|
Audio encode |
G.711 codec standard, supports audio and video synchronization |
|
White balance |
automatic |
|
Noise reduction |
2D/3D digital noise reduction |
|
Wide dynamic range |
Support digital wide dynamic range |
|
IR LED |
4PCS Array LED |
|
Intelligent detection |
Motion detection; support JPEG capture |
|
night vision fill light |
Infrared light + white light (20M) |
|
Day and night switching mode |
IR-CUT infrared filter type |
|
Audio |
Optional, supports voice intercom/built-in microphone speaker |
|
Operating temperature |
-10℃~+55℃ |
|
Working environment |
outdoor/indoor |
|
Waterproof |
IP66 |
|
Network Video Recorder (NVR) |
|
|
processor |
Industrial grade embedded microcontroller |
|
operating system |
Embedded LINUX operating system |
|
Image decoding |
720P, 960P, 1080P, 3MP, 4MP, 5MP, 8MP video encoding |
|
Video access |
8*720P/960P/1080P/3MP/4MP/5MP/8MP |
|
video output |
1080P@60fps, 4K@30fps (1 VGA output, 1 HDMI output) |
|
Video recording method |
Scheduled recording, motion detection recording |
|
Video storage |
SATA hard drive*1 maximum 6TB |
|
Video playback |
1*8MP playback; 1*5MP playback; 2*3MP playback; 8*1080P playback |
|
backup mode |
USB backup and network backup |
|
Audio output |
1*3.5mm audio interface (supports HDMI audio output) |
|
Audio input |
|
|
Network Interface |
1*RJ45 10M/100Mbps adaptive Ethernet interface |
|
POE |
4/8* PoE IEEE802.3af/RJ45 10M/100Mbps adaptive Ethernet interface |
|
USB |
2*USB 2.0 |
