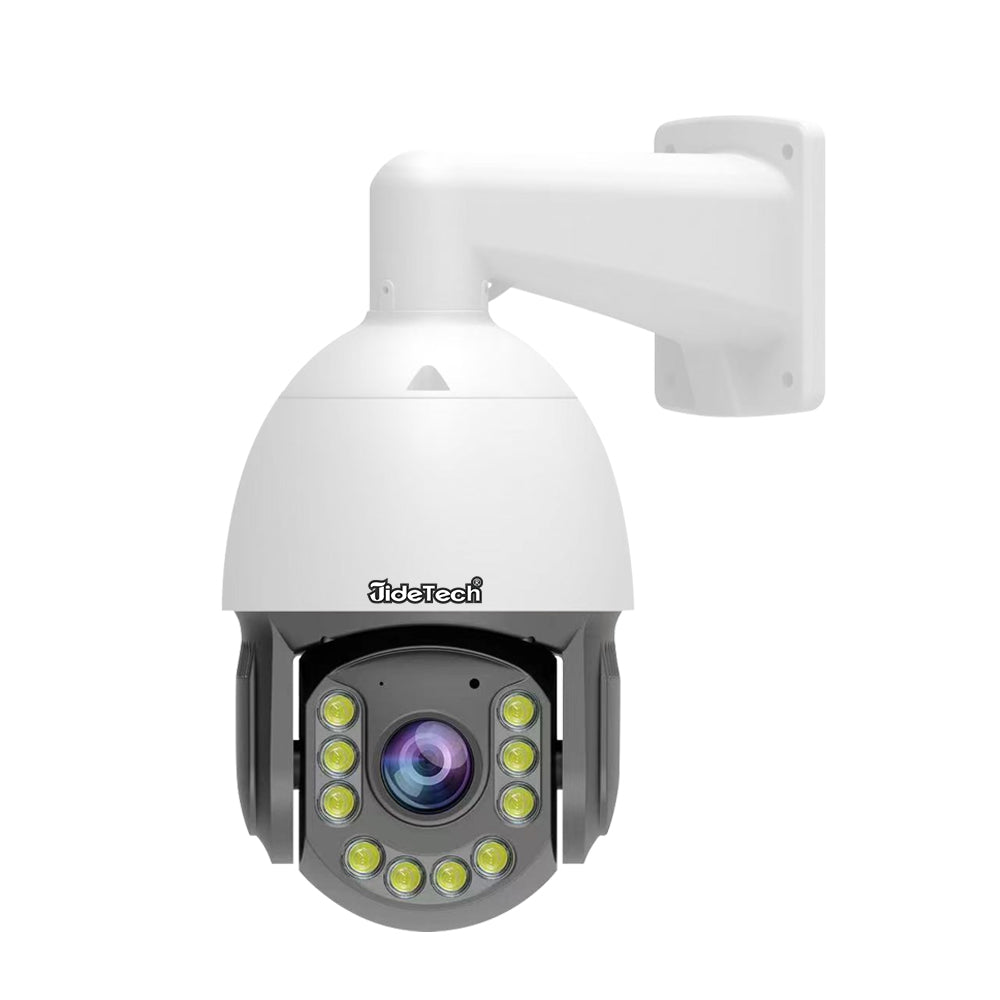

JideTech 4K HD 30fps 36X Zoom POE PTZ IP Camera (JD-P4-36X-8MP)

MODLE

P4-36X-8MP

Sensor

CMOS

Video Compression

H.265 Main Profile / H.264 High profile / M-JPEG, Support bit stream 0.1M~8Mpbs adjustable; support frame rate 1~30 frames/sec adjustable;

WDR

Support WDR,HDR

White Balance

Auto/Indoor/Outdoor/Manual

Auto-Tracking

Support

Resolution

8.0 Megapixels 3840x2160@ 30fps

Image output

Main Stream: 30fps (3840*2160, 3072*2048, 2592*1944,2560*1440, 2304*1296，1920*1080，1280*720)

Sub-stream: 720*480, D1, VGA, 640*360;

Image adjustment

Support Brightness, Contrast,Saturation,sharpness,blc,hlc,2D NR,3D NR,Power Frequency, Forced Anti-flicker, Horizon Flip, Vertical Flip, Defoggin,Day shutter and Night shutter mode

Lens

36X optical zoom f=4.6 -167mm

LED

Infrared LED

Night Vision

up to 150 meters

IR CUT setting

Support Auto, Timing, External and Manual

Light ON/OF sensitivity

0-100 can be set

Light on illumination

Support 0.001Lux to 1.5 LUX

Image mode

Support Normal, Forced frame rate and
Super Starlight mode

OSD

Support title, resolution, bitrate, time, Week, and support upload image

Preset Points

128

BLC

Auto

S/N Ratio

≥48dB（AGC OFF）

Horizontal rotation angle

360° infinite rotation

Vertical rotation angle

90° up and down rotation

Rotation maximum speed

maximum 50°/sec, the speed can be customized

Humanoid Tracking

support fixed-point tracking and cruise tracking

Tracking Speed

Tracking speed can be customized

Tracking zoom

When tracking, support automatic lens zoom on or off

Horizontal 360°scanning

supports horizontal 360° horizontal scanning all the way, and supports the speed can be customized

Cruise

support one cruise scan (maximum support 32 preset positions)

Cruising speed

support speed adjustable

Left and right limit scanning

support 1channel limit scanning, support adjustable scanning speed

Focus Mode

Support 3 focus modes

Minimum focus distance

support 1.5m, 3m, 6m and infinity

Day and night switching

support automatic D/N switch, and can modify the switching sensitivity.

Storage

Support Max 256GB SD card, NFS, PC software

Audio compression standard

G711，PCM

Audio encode

G.711,G711A,Sample Rate:8000-16000，Bitrate :64000，AAC ,Sample Rate: 16000 Bitrate :16000

Ethernet

1*10/100Mbps Ethernet port, RJ45 port

IP address

Support static and DHCP, and Support MAC address modification

Network protocol

Support ONVIF and Onvif Absolute move, RTSP, RTMP, Hikvision protocol

AI

Support Motion detection, Human detection，vehicle tracking

Alarm

Support AI alarm, Video cover alarm. Mobile app alarm, Support alarm recording time customization, 20 seconds to 10 minutes can be set

Users Manage

Support add and modify user and password And Support authority management

Reliability

Lightning protection design of motherboard, in line with international standard IEC61000-4-5

P2P connection

Support mobile APP and P2P PC APP

Humidity

≤95% Non Condensing

Power

 DC12V ≤4A

Consumption

< 20W

Operating temperature

Indoor: 0°~ +40°             Outdoor: -40°~ +60°

Related validation

IP66,CE,FCC,RoHs
