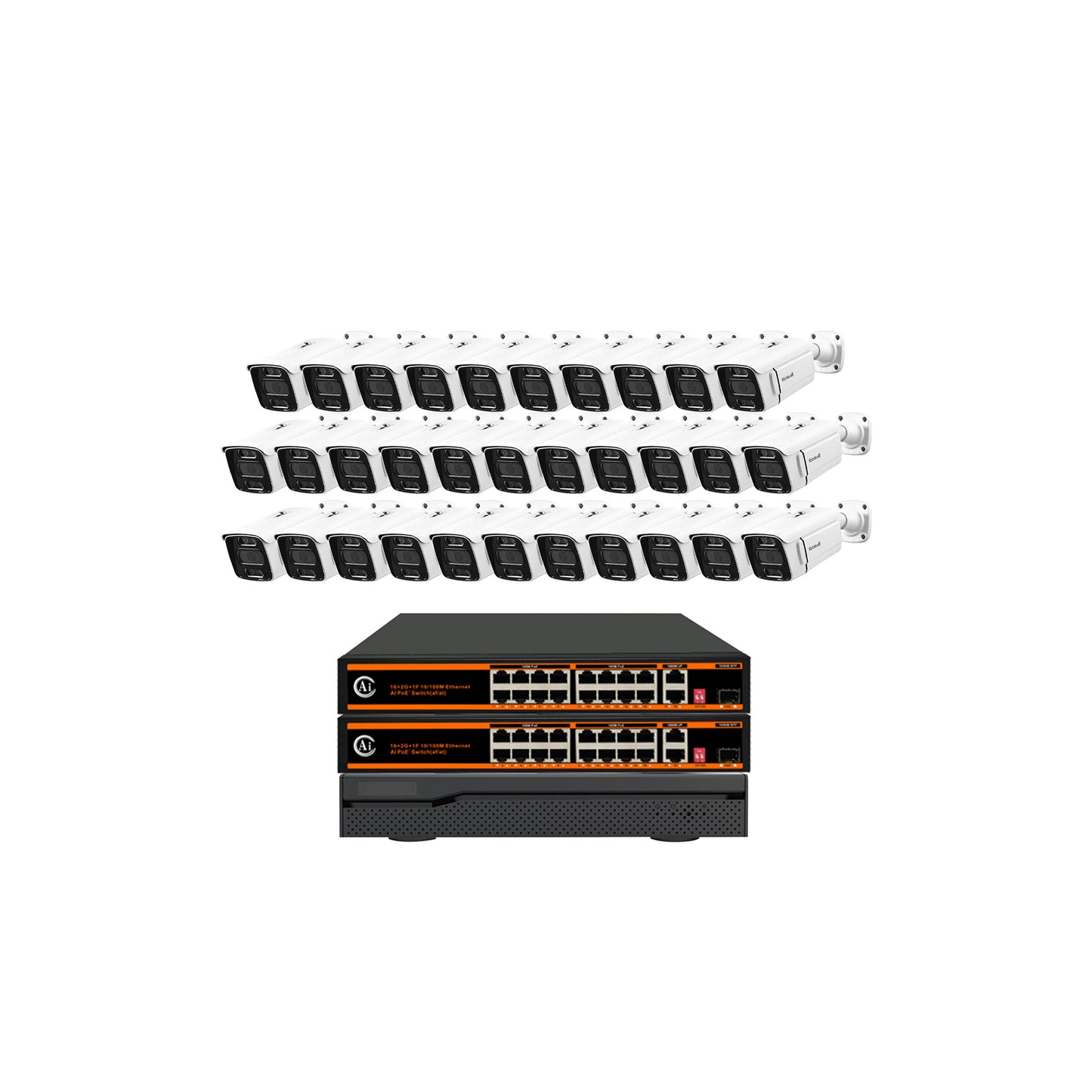

JideTech 5MP/8MP 32CH POE Security Camera Systems with NVR Video Recorder (NK2-32H-5MP)
JideTech 5MP/8MP 32CH POE Security Camera Systems with NVR Video Recorder (NK2-32H-5MP)
Impossible de charger la disponibilité du service de retrait
Key Features

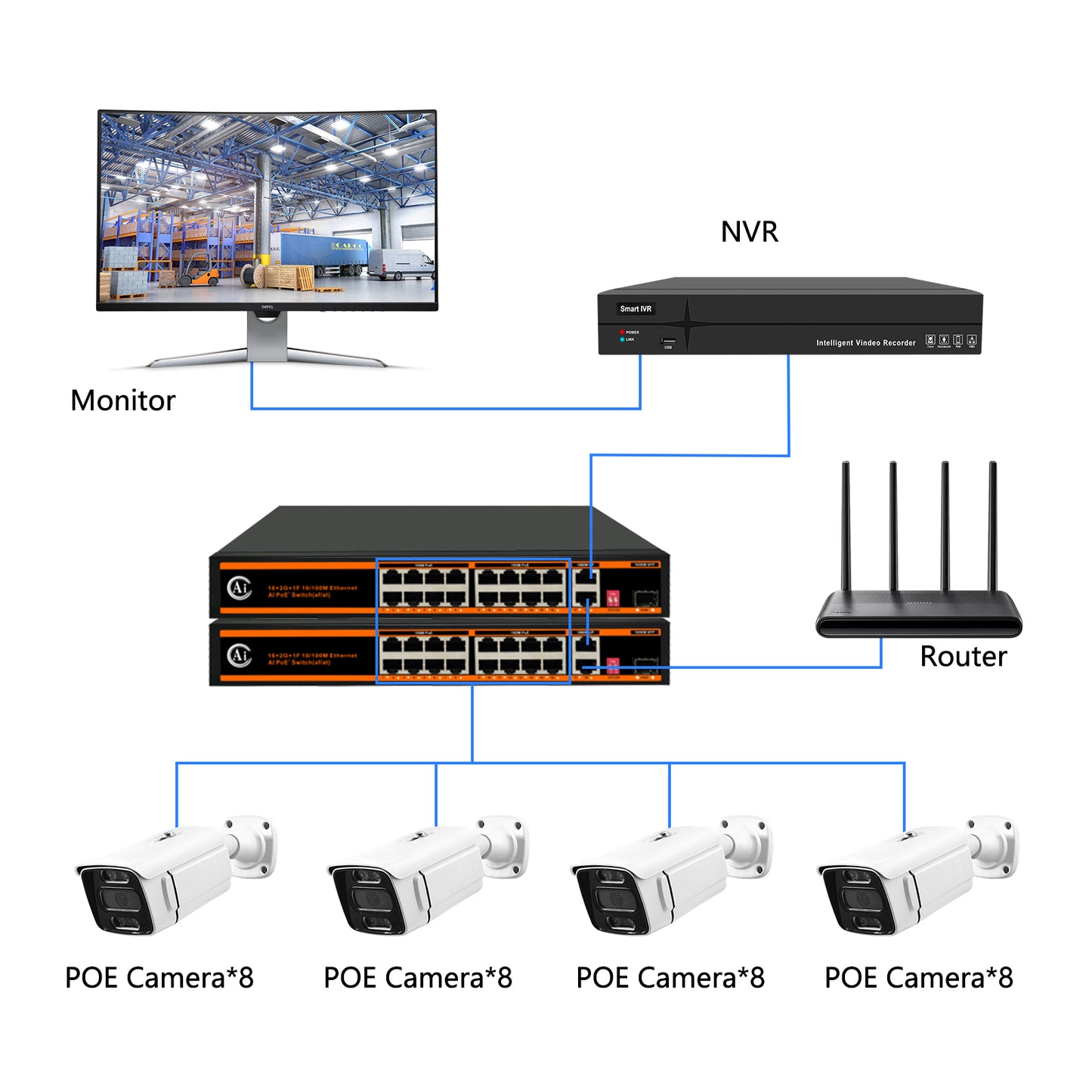

- POE power supply: the network cable is directly connected, the first line meets the network + power supply, and the installation is convenient.
- 4K 8MP full HD pixels, H.265+ high compression ratio, reduce storage space and transmission bandwidth, automatically add IPC, support plug and play.

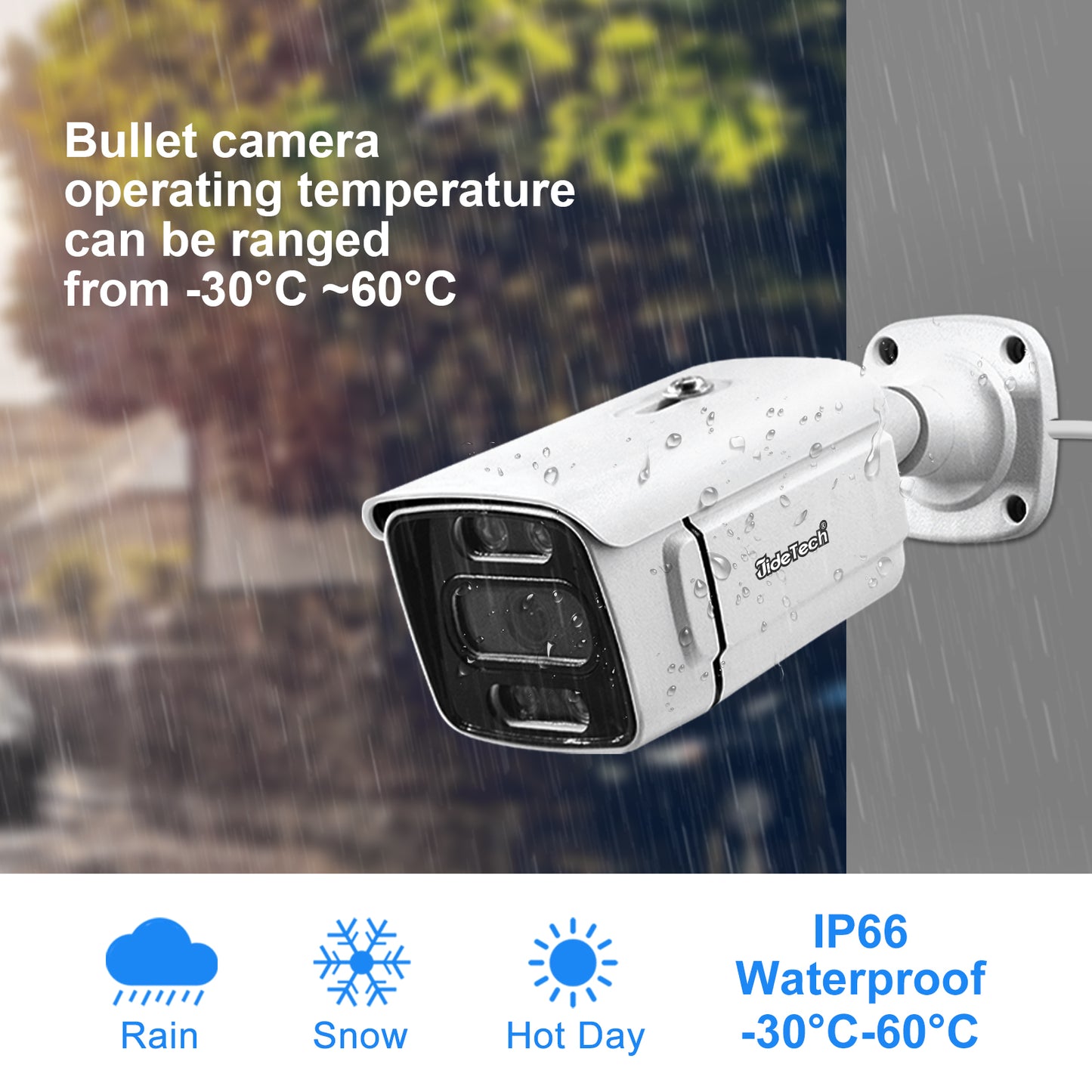

- Full metal shell camera, waterproof IP66, built-in 3.6mm high-definition lens, 4 array high-power infrared lights, and the distance can reach 20 meters.
- Built-in microphone, support remote intercom, support multi-channel remote access and playback of mobile phones and PC clients, and view the live broadcast anytime, anywhere.
- Intelligent humanoid detection, filtering false alarms and accurately protecting your safety. The camera can also be configured to specify the detection type when you send an alert.
- Specification
|
Camera |
5.0MP POE IP Camera |
|
Image sensor |
1/2.8" 5.0M Pixel CMOS |
|
Lens |
4mm, horizontal field of view: 75° |
|
Lens Mount |
M12 |
|
Min. Illumination |
Color：0.01Lux@(F1.2，AGC ON)，B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IR led ON) |
|
S / N ratio |
≥39dB |
|
Shutter speed |
1/5 - 1/20,000s， |
|
Day & Night |
Day / Night / External control（ IR Cut Filter） |
|
AGC |
Auto / Manual |
|
White balance |
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
Wide dynamic range |
Digital Wide dynamic range |
|
Digital noise Reduction |
2DNR,3DNR |
|
Video Compression |
H.265 Main Profile/H.264 Main Profile/M-JPEG |
|
Audio Compression |
G711 ，PCM |
|
Max. Image Resolution |
2560*1920@15fps, 2340*1296@15fps, |
|
Image Resolution |
Main stream ( 2560*1920, 2340*1296, 1920x1080, 1280×960,1280×720,720×576,640×480） |
|
sub-stream （640×480,352×288,320×240,176× 144） |
|
|
Bit rate |
CBR/VBR, bit rate：32Kbps~ 10Mbps variable |
|
Motion Detection |
Support |
|
Privacy Zone Masking |
4 privacy masks programmable |
|
P2P |
Android、IOS |
|
Protocols |
TCP/IP ，HTTP ， NTP ，IGMP ， DHCP ，UDP ，SMTP ，RTP ，RTSP ，ARP，DDNS ，DNS ，P2P |
|
Onvif |
Non-Support |
|
Power |
DC12V/1A |
|
POE |
Power Over Ethernet POE: 48V-52V (IEEE 802.3af standard ) |
